CAB402xxB

10 pin Female to 15 pin Male D-Sub

10 pin Female	Wire for 10 pin female	Signal	Wire for 15 pin Male	15 pin Male
1	Blue	NTSC	Blue	2
2	Black	Gnd	Black	10
3	Brown	Y	Brown	4
9	Shield	Gnd	Shield	9
5	White	RXD-Serial	White	8
6	Yellow	TXD-Serial	Yellow	15
7	Orange	C	Orange	3
8	No Conn.	-	No Conn.	11
4	Green	Gnd	Green	12
10	*Red	+12V	*Red	1

Cable Part Number: 380-421-0008 [Belden #9538] (BP series only)
* Heat shrink to prevent shorting to other wires with 1/8" heat shrink.

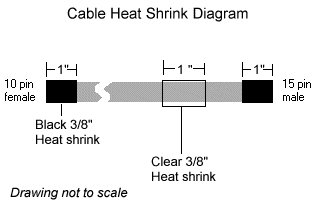

Place 1" long piece of 3/8" black glue heat shrink on 10 pin end.
Place 1" of clear 3/8" heat shrink on 15 pin end for label.
Place 1" long piece of 3/8" black glue heat shrink on 15 pin end.

View is from solder side

10 pin female P/N 150-007-0010	15 pin male P/N 150-010-1150
